120 Gallon Vertical Propane Tank - ASME
Residential Propane Tanks

120 Gallon Vertical Propane Tank - ASME

ASME CertifiedDOT CertifiedShips Empty

This tank is sold empty. It ships with no propane or fuel in it. Once installed, it must be filled by a licensed propane supplier - we do not supply gas.

$915.00

Factory-direct pricing. Delivery $350.00 flat to the 48 contiguous states.

Product Description 120 Gallon propane tanks continue to be a popular choice among consumers when it comes to heating for residential, agricultural, and commercial industries. If you’re looking for a…

A licensed local installer we arrange sets the tank on a prepared pad, fits the regulator and gas line, and leak-tests every joint before handover.

Ask a Question

Secure card payment at checkout. You pay at checkout, so nothing is left outstanding. Your order is confirmed and moves into processing the moment the payment goes through. How ordering works · Questions? (210) 570-4603

SKUPT4L-120GALLONVERTICALP-JTYMR
SuppliedEmpty - no propane or fuel included
Capacity120 gallons
ConditionNew
Orientationvertical
CertificationASME / DOT
ShippingLTL freight - $350.00 flat

Valves & fittings included

Fill valve
Double-check filler valve - the connection the delivery truck fills through. 250 gallons and up take the 1-3/4 inch ACME bulk-fill connection.
CGA-510 service valve
The vapor outlet this tank is fitted with, as stated on the listing.
Pressure relief valve
Required safety device. Vents to atmosphere if tank pressure rises above the set point, then reseats.

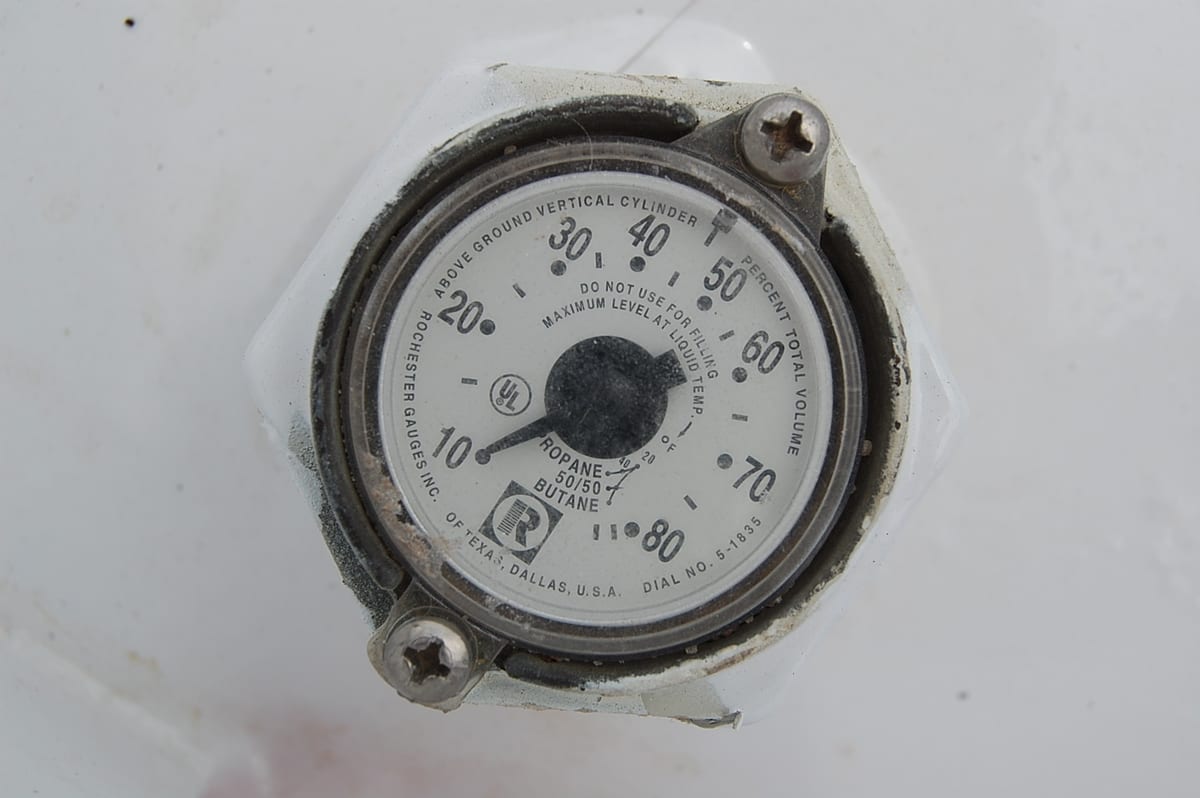

Float gauge
Dial gauge reading tank level as a percentage of capacity.
Liquid withdrawal valve
Draws liquid propane rather than vapor, for transfer and high-demand liquid service.
Vapor return valve
Returns vapor to the delivery vehicle during filling and relieves pressure back to another vessel.

Valves are factory-fitted to the vessel. The regulator, gas line and the propane itself are not included - a licensed installer connects the tank and a licensed supplier makes the first fill.

Home delivery included - shipped by LTL freight to your address

  • Liftgate service is included on residential deliveries.
  • Delivery is curbside, by appointment booked on the number on your order.
  • Delivery is included in the price you pay at checkout - nothing is invoiced afterwards.
  • Ships from the nearest of our three US yards - Michigan, Missouri or Texas.
  • Delivered anywhere in the 48 contiguous states.

Full terms on shipping & delivery and installation.

About the 120 Gallon Vertical Propane Tank - ASME

Product Description

120 Gallon propane tanks continue to be a popular choice among consumers when it comes to heating for residential, agricultural, and commercial industries. If you’re looking for a 100 gal propane tank size, this is the right choice for you. 100 gallons refers to the actual number of gallons of propane the tank can hold, and 120 gallons refers to the total water capacity of the tank. This type of tank is also known as a 420 lb. tank, which refers to the number of pounds of propane the tank will hold when filled to 80 percent. Typically, 100 gallon propane tanks are used for home heating, hot water, dryers, generators, and pool heat. 100 gallon propane tanks are also used for commercial applications such as heating, cooking, and dry cleaning. They are about 4 ft. tall.

Propane is easy to store and refill. Includes an internal gauge within tank lid for simple and convenient refilling. Recommended refilling is between 20-30% capacity.

A twin stage regulator is necessary for tank usage at a safe, working pressure. Propane is odorless, but an odorant is added to it so that it will give off a smell if it’s leaking. If you have questions about the operation of your appliance or gas systems, contact your local gas dealer. Practice safety at all times. Never allow your gas container to be filled above the maximum safe level.

Specifications 120 Gallon propane tanks

  • Size: 118 gallon
  • LPG Capacity: 95.9 gallons
  • Water Capacity: 118 gallons
  • Overall Height: 53.8″
  • Body Height: 45.6″
  • Cylinder Diameter: 30″
  • Base Diameter: 23.1″
  • Tare Weight: 291 lbs.
  • Standard Specification Valve: CGA-510
  • Sight Gauge: Yes
  • Color: White

Notes:

  • Still under factory vacuum seal, must have local propane provider fill the tank for the first time.
  • First fill requires a propane provider to break the suction seal by filling the POL valve with Methanol.

120 Gallon tanks Features

  • DOT retest periods are 12 years after manufacturing, then each 5 year period thereafter
  • TC retest period is every 10 years
  • ASME code does not mandate a retest period
  • Carbon steel construction with powder coat paint for maximium rust protection
  • Heavier material for strength, protection and longer life in the field
  • Collar and valves oriented for ease of manifolding
  • #54 liquid level outage valve orifice
  • Durable, rust-proof and dent-proof HDPE (High Density Polyethylene) lids have a 10 year guarantee
  • For aboveground use
  • Made in the U.S.A.
  • See data sheet for more information

ASME Propane.
